If connecting wireless devices, press the Mode button until the Wireless LED lights up. Our payment security system encrypts your information during transmission. Blinking when the DATS sen- sor has failed, or the wires are shorted or open. Called text support he told me to install dedicated transformer to the board. The temp that locks out second or third stage (only for conventional and heat pump configu- rations, not dual fuel systems). Wondering if its the control is a damper issue. Quick Answer: What is mark up in construction? Fig. Does anyone have some suggestions? THIS WARRANTY IS THE ONLY EXPRESS WARRANTY RESIDEO MAKES ON THIS PRODUCT. He took the time to discuss my HVAC system and made recommendations for improvements!
Zone thermostats are all set to off.
Required fields are marked *. But to be safe, replace your batteries with the same size that were in there before. The wiring channels give you a really clean look, and the push to insert terminals are really nice an make installation quick. Heat turns on (fan also turns on if configured for fan on in heat). heat.
partsaps Smart Home Comfort & Security at your Fingertips.

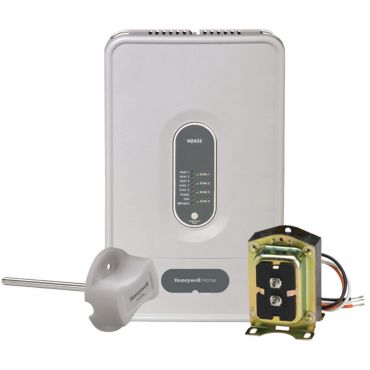

Controls up to two stages compressor and two stages fossil fuel in dual fuel mode. The company that sold it to me has thrown up its hands and given up. Required fields are marked *, Copyright . The HZ432 TrueZONE panel contains an LED display that communicates system and. Do not wire the A-B-C-D terminals of the THM5320R to the A-B-C-D terminals of the HZ432 zone control panel. 2 in, Output Amps 10 VA, Inrush Amps -, Connection Push-Button Terminals, Terminal Designations Four Of M1, M4, M6, R, C, W1/E, W2, W3, Y1, Y2, G, O/B, L; One Of RH, RC, W1/E, W2, W3, Y1, Y2, G, O, B, DS/BK, R, C, AZ1, AZ2, OT, DATS, Rotation Angle (Deg.) zone status. All thermostats (4 zones) are set to 78. Emergency heat will only run when both HEAT and EM HEAT are lit.
Blinking amber when there is a damper or thermostat short circuit (circuit, To enter Checkout, with the zone panel cover off, press the Mode button until the Check out LED lights up.
Solid red when closed or closing. All Rights Reserved Powered by. Damper position unchanged or all dampers open during purge. Your email address will not be published. The temperature outside has been around 100 degrees. Solid when in emergency heat mode. How can I diagnose? They say we need to replace the board possibly or ? This warranty does not cover removal or reinstallation costs. You can test all the functions to troubleshoot things, but right now it seems to be working correctly. Im elderly and know nothing about such things but shouldnt they have found the red light when they were checking the supposedly bad ac unit? His passion for controls and the desire to provide an easy way for HVAC professionals to keep up with the rapid changes in controls technology inspired him to create Controltrends. When do we say "my mom made me do chores" and "my mom got me to do chores"? I try to fatten myself up, but my metabolism disagrees. I turned it off by the thermostats and when I went to them back on yesterday nothing would happen. Nothing would come on. I looked at the setup in the basement and saw these red lights - does that mean the system is not working correctly? Blinking amber when there is a damper or thermostat short circuit (circuit, To enter Checkout, with the zone panel cover off, press the Mode button until the Check out LED lights up.
It was working yesterday but is not even lit up this morning. Any suggestions, Customer has a HZ432 two zone duel fuel w/2 wont power the furnace on change over, Heat LED is lite no 24 v on W from board. Also, the Emergency Heat light is on constantly. Solid when in cool stage 1. open. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED TO THE FIVE YEAR DURATION OF THIS WARRANTY. Help others learn more about this product by uploading a video! This means the outdoor unit has shut itself off because of a problem, and it sends a signal to the thermostat, letting you know that there is a problem. Im not sure if its a setting you can change, but if no heat or AC is called for, the zones are normally opened. What is the derivation for "Partial Expectation"? Fig. I have a HZ432 truezone split so I changed the batteries in one of my thermostats and I lost power to my panel any recommendations. Solid when in purge (at power-up and after a call for heat or cool). A wired or wireless outdoor sensor is required for Dual Fuel applications. The A/C worked when in the Test mode when the buttons worked, but now I cant get anything on the panel to work. You can count the number of flashes, usually between two and nine, and then it just repeats itself. 13. It has worked well for four years. For conventional systems, see page 5. Reviewed in the United States on August 22, 2020. Open the door of the battery compartment. We dont share your credit card details with third-party sellers, and we dont sell your information to others. Honeywell Hz322 control panel -do they go bad? Here is a link to a PDF manual if you want to know more about it, but once they are set up, they don't require any maintenance. outdoor temperature is above OT balance tem- perature setting. Any blink codes check the manual does it say anything. I looked at the setup in the basement and saw these red lights - does that mean the system is not working correctly? Metallic smell when HVAC Unit.
Just moved into a new multi-family house with central heat/AC and the upstairs bedroom doesn't seem to warm up very well, when the thermostat is on, I don't feel hot air blowing in from the vents. Tests thermostat connection with HVAC off. We have an hz322, the zone 1 and 2 are both green and cool for both zones are green fan light green but upstars is not cooling, downstairs cools fine. I have the Honeywell HZ322. Use an SDCR (Slave Damper Control Relay) for additional dampers tosurpass the maximum damper VA per zone. What does "Check the proof of theorem x" mean as a comment from a referee on a mathematical paper? strobe horn flexzion CAUTION: Voltage Hazard.Can cause electrical shock or equipment damage. See the Configuration section on. Then I referenced the dip switches on the old panel for the LCD software settings on the new panel. Full content visible, double tap to read brief content.
Your email address will not be published. Steps 1114 verify thermostat operation and correct wiring. Connect outdoor air temperature sensor as shown. The LEDs indicate the following information. Reviewed in the United States on December 18, 2019. Shows what's inside. Cut them out and attach them to the inside of, Solid when in heat stage 1. After installation, programming it is pretty easy, just follow the manual. When the thermostat light (Emergency Heat Light) is flashing or on during normal operation (whether in the cooling or the heating mode, but not the Emergency Heat mode), this usually indicates that the outdoor unit is "locked-out". I do not have a manual to program or troubleshoot that unit. Honeywell HZ432K Truezone Kit. A faster way to reset a Honeywell thermostat without a reset button would be to switch off the circuit breakers power. Thanks for contributing an answer to Home Improvement Stack Exchange! JUMP W1/E TO W2 AT THE THERMOSTAT CONNECTIONS ON ALL ZONES OF THE ZONE PANEL. TrueZONE HZ432 Panel for conventional, heatpump or dual fuel applications expandable up to 32 zones (3H/2C). Some of these items ship sooner than the others. I tripped the circuit breaker, now zone one lights up red. How is making a down payment different from getting a smaller loan? They are the kind of people you would invite to your house for dinner. My HZ322 TrueZone is cooling the downstairs, but not the upstairs. Home Improvement Stack Exchange is a question and answer site for contractors and serious DIYers. When I pushed the electric heat button on the zone panel the unit turned off. i push the boot and go thru heat no cool then purge and it stick em-heat? Scroll through the selection choices by using the Adjust Setting Left and Right arrow buttons. Sometimes a unit will "lock-out" on a fluke or a weather-related condition, and resetting it will solve the problem. Anyone have any ideas? When outdoor temperature is above OT Lockout temperature, locks out second and third stage (only for conventional and heat pump configu- rations), not dual fuel configurations. Number of minutes to delay before engaging second stage. Blinking when stage 2 locked out due to DATS. The control panel indicates the temp going up to 153 pumping heat. Master bedroom on another zone keeps getting colder and colder with the thermostat turned off. This light does not indicate a call for. It only takes a minute to sign up. truezone dats supplyhouse Fan controlled by HVAC or panel during purge. NEVER WIRE A THM5320R OR THM5421R WIRELESS EIM TO THESE TERMINALS. Without that battery backup, many homeowners who experience power outages regularly could get frustrated and stop reprogramming their thermostat. Using this kit we installed 4 zones in our house, and now every floor is comfortable. Solid when in purge (at power-up and after a call for heat or cool). Both zones are calling for emergency heat, but the board will not send the emergency heat signal to the equipment. Why is there a red light blinking on my furnace? All rights reserved. I've never had one fail. on the inside of the HZ432 cover. 4 Zone, Three-Stage Heat/ Two-Stage Cool Zone Control Panel w/ Discharge Air Sensor and Transformer, Heat Pump and Duel-Fuel System Compatible. Why? I have a Honeywell TrueZoneHZ322. To remove it, first push the tab on the top of the thermostat.
Can the panel be reset? Steps 310 cycle through heating and cooling stages and open and close dampers to verify proper operation of the equipment and dampers. Instead, our system considers things like how recent a review is and if the reviewer bought the item on Amazon. My unit was working last week. honeywell zone kit control hvac parts cooling controls heating larger Any suggestions on how to get upstairs cooling again. Fig. When flying from Preclearance airports to the US, do airlines validate your visa before letting you talk to Preclearance agents? [{"displayPrice":"$341.99","priceAmount":341.99,"currencySymbol":"$","integerValue":"341","decimalSeparator":".","fractionalValue":"99","symbolPosition":"left","hasSpace":false,"showFractionalPartIfEmpty":true,"offerListingId":"%2F2WWCKfQPF4Wiam7sIK7xOYsVVOExuv5KLIFExfLlwyNrnB3oz11KaVvE8ICsGp5j5%2FVTjDmvF4VYaaW%2Bxu4eFBHiDwB5Xrxg8x1Lip0Dc4YFvfE%2F6KnY%2FJXh%2BRbwmERchKGITKBqfnTRksqliDx%2F8QmeoH505FvnN6eJC1KX8k3zKNNY8vcOJikRexdpSrL","locale":"en-US","buyingOptionType":"NEW"}]. Seams to me that during the day works most of the time but during the night with a cold weather totally stop and I have to reset again. The following diagram is an overall view of wiring for a conventional system as depicted in steps 39. After 5 seconds, reinsert them the right way. There are 2 thermostats per floor, with 2nd and 3rd floor being a single apartment duplex. This is done by making the thermostats call for heat or. Your recently viewed items and featured recommendations, Select the department you want to search in, Free returns are available for the shipping address you chose. Solid green when open or opening. the 3rd floor when on cool goes down to 64 or lower when I have the thermostat set for 74. Press the Mode button (the Config LED will light up). Your email address will not be published. They worked at first, but now they do nothing. If you are looking at your furnace and do not see a red light at all when you know it should be on, that means your furnace is not receiving power. I love the push in wire connections -- no screwing them down -- each spot can handle two wires. truezone honeywell rectangular zoning damper Will blink for 3 minutes at power-up if DATS is not present. I changed thermostat but blower stil runs upstairs on 33rd zone lights on the control board 11st and 2nd zones are green 33rd zone is red any suggestions, I have a Honeywell hz322 3 zones my 3 zone is upstais blower comes on and runs when set point is75 and room temp is 70 to 72. 15. If any of the zone lights are blinking (may blink amber color), then there is a problem with one of the damper motors. This is an easy DIY job for just about anyone. honeywell truezone zoning heat panel cool However, the room temperatures range from 68 to 70 degrees and cold air keeps blowing strong. How do people live in bunkers & not go crazy with boredom? is this actually happening or am i seeing poor zone motor operation i think the zones are spring loaded open, by default. When you see a flashing light, your furnace is sending you an error code. Below is a list of possible causes. They left and a tech that came back for a tool that was left noticed the red light on our board. Steps 1114 verify thermostat operation and correct wiring. SHOWN ON NON DUAL FUEL HEAT-PUMPS IF COMPRESSR STAGES IS SET TO 2 AND AUX HT ENABLED IS SET TO YES, OR ON CONVENTIONAL APPLICATIONS IF HEAT STAGES IS SET TO 3. Red = Professional fix | Blue = Homeowner fix. Why?
Zone panel wiringdual fuel: two-stage furnace and two-stage heat pump. Ships from and sold by Professional Grade Products. For furnace systems, high limit should be set approximately 15 degrees below the furnace high limit setting. Honeywell Home DCR315XX Doorbell User Guide, Honeywell Home Y87RF Single Zone Thermostat User Guide, SYLVANIA SDVD1046 Progressive Scan Auto Load Compact DVD Player Instruction Manual, Cox Communications Cisco Webex User Guide, Chipdip DOC014485675 Waterproof Digital Thermometer User Manual, belltech 6400 Lowering Shackles Instruction Manual, JVC HAECX20G Sports Clip Inner Ear Headphones User Instructions, Panasonic Corded Cordless Phone User Guide, GE Appliances GDF550PGR Front Control Dishwasher Installation Guide, TH1110D2009 (non-programmable) TH4110U2005 (Programmable), TH6220U2000 (Programmable) TH6220WF2006 (Programmable, Wi-Fi), TH4210U2002 (2H/1C, Programmable) TH6210U2001 (2H/1C, Programmable) TH6220U2000 (2H/1C, Programmable) TH6220WF2006 (2H/1C, Programmable, Wi-Fi) TH6320WF2003 (3H/2C, Programmable, Wi-Fi), TH6320WF2003 (Programmable, Wi-Fi) TH8321WF1001 (Programmable, Wi-Fi) THX321WFS2001W (Programmable, Wi-Fi), Constant pressure regulating damper (CPRD), Modulating Automatic Round Damper (MARD) (2 VA), TotalZone Add-A-ZoneTMControl Panel, Wireless Outdoor Air Temperature Sensor***, In heat mode, fan controlled by HVAC or turned. -, Torque (In.-Lbs.) 14. This is a useful way to troubleshoot which thermostat terminals are actually energized on each zone. Unable to add item to List. Select the RESET option and confirm with the OK button. I turned both thermostates off and then back on and nothing happens. IF EQUIPMENT DOES NOT HAVE SEPARATE E AND AUXILIARY TERMINALS, JUMPER E TO W3 ON PANEL AND WIRE TO E. ABCD TERMINALS FOR THE THM4000R WIRELESS ADAPTER ONLY. The tech that came to check our ac said it was completely out of Freon and recommended we install a new unit (ours was a Trane XL still under warranty) so we did. Zone 3&4 lights are blinking, indicating a short. See the Configuration section on page 10 for instructions on using these buttons. Items in red usually require a service call. Heat turns on (fan also turns on if configured for. It seems like the damper is staying open in the master bedroom and not opening in the downstairs. eurofyre atex See the Configuration section on. 03-20 | Printed in United States, DW311XX DW313XX Contents Getting started Wired push-button with batteries Wired illuminated push button with transformer Always ensure the, T822K1018/U Specifications Heat Only Thermostat 50-90 F Thermostat Type Mechanical, Non programmable Color Premier White Includes Thermostat, Wall, DCR315XX Contents Getting started Optional features Linking Download full guide Troubleshooting http://livewell.honeywellhome.com 32310686-001 Rev_C 2020 Resideo Technologies,, Honeywell Home Y87RF Single Zone Thermostat Setting your room temperature Your current room temperature is shown in the, Your email address will not be published. Does a Honeywell thermostat have a battery? ethics of keeping a gift card you won at a raffle at a conference your company sent you to? Your email address will not be published.

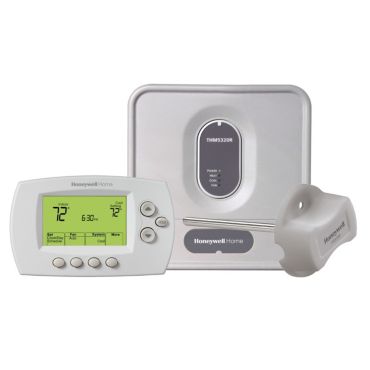

Solid when in heat stage 1. I have the honeywell HZ322 controlling 3 zones using the honeywell focuspro th5000 thermostats. When a wireless thermostat, Portable Comfort Control, wireless outdoor air temperature sensor, or other RedLINK wireless device is used on systems up to four zones, wire the THM4000 Wireless Adapter Module to the ABCD terminals on the zone panel. To add the following enhancements to your purchase, choose a different seller. If you see the red flashing light during regular operation, this usually means that the outdoor unit was shut off due to a problem and is currently locked out from normal operation. HONEYWELL HVAC HZ432, My honeywell truezone HZ221 is not even lit up at all. Two work perfectly all the time, and the third shuts off for no apparent reason. He formed the Butz Thermo-Electric Regulator Co., Minneapolis, in April, 1886, and soon invented a device he called the "damper flapper an ingenious predecessor to the modern thermostat. I just moved into a new multi-family house with central heat/AC and the 3rd floor bedroom doesn't seem to warm up very well. To subscribe to this RSS feed, copy and paste this URL into your RSS reader. I have a Honeywell hv322 3 zones my 3 zone is upstairs blower comes on and runs when set point is 75 room temp will be 70 to 72. Two dampers activate with one thermostat. For no apparent reason it turns on the blower, and 3 of the four zone lites red indicating a heat call but does not light burner. So after the call for heat is done, all dampers open up. vABCD TERMINALS FOR THE THM4000R WIRELESS ADAPTER ONLY. Allow the batteries to stay this way for about five seconds. Honeywell HZ432K Truezone Kit, 4 Piece Set, Gray, , interest-free upon approval for the Amazon Rewards Visa Card, Easy-to-follow, digital display uses real language to guide installer through four easy steps. Connect and share knowledge within a single location that is structured and easy to search. on the inside of the HZ432 cover. Number of minutes to delay auto changeover when one zone is calling for heat and another is calling for cooling. To reset your Honeywell Thermostat, switch it off, remove the batteries, and put them back in reverse polarity: negative terminals facing positive. Downstairs which is on ones own doesnt respond to the thermostat keeps getting hotter and hotter and will not cool. I'd recommend Hannabery HVAC to everyone. To learn more, see our tips on writing great answers. Amazon price was about 100 bucks cheaper than the local supply house. Your question might be answered by sellers, manufacturers, or customers who bought this product. A Honeywell thermostat may be malfunctioning generally, and this is the cause of its inability to hold temperature. This item can be returned in its original condition for a full refund or replacement within 30 days of receipt. Solid when in cool stage 2.
My HZ432 panel has limit 200 in the read out and will not operate . Does it ever turn green (in 30 seconds or so) ? Multistage changeover is only available on dual fuel applications configured for 2 heat pump stages. honeywell zoning truezone heating hvac system air thermostats arlington washington wireless dc adapter thermostat repair oakland Resideo warrants this product, excluding battery, to be free from defects in workmanship or materials, under normal use and service, for a period of five (5) years from the date of first purchase by the original purchaser. open. Our 1970's house had only one thermostat, and because of that had great temperature variations from floor to floor. A subreddit for Heating, Ventilation, & Air Conditioning technicians - please visit r/hvacadvice to ask general questions, and r/thermostats for thermostat issues! Zone panel wiringheat pump, 3-heat/2-cool with electric stage 3 heat. Cut them out and attach them to the inside of, Blinking when the DATS sensor has failed, or the wires are shorted or. I have an HZ432. call Resideo Customer Care at 1-800-828-8367.
Find answers in product info, Q&As, reviews. Sold by ProSupplyDirect and ships from Amazon Fulfillment. Resideos sole responsibility shall be to repair or replace the product within the terms stated above. By clicking Post Your Answer, you agree to our terms of service, privacy policy and cookie policy. Will blink for 3 minutes at power-up if DATS is not present. Components Coils, Heaters, Motors, etc. Asking for help, clarification, or responding to other answers. NEVER WIRE A THM5320R WIRELESS EIM TO THESE TERMINALS. The system works well. Allow panel to downstage multistage equip- ment when near DATS high or low limit.
Solid green when open or opening. Gently slide the thermostat housing up and off the wall mount plate. Sanity check mini split layout for old brick house. -. KAWACH Honeywell THM4000R1000, Small, Gray.
RESIDEO SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY,EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT. Displays active Tstat1 terminals or displays wire-, Displays active Tstat2 terminals or displays wire-, Displays active Tstat3 terminals or displays wire-, Displays active Tstat4 terminals or displays wire-. Emergency heat turns on (fan also turns on). Does Honeywell thermostat have a reset button? Like others have said, if you label all wires and methodically transfer them to the new controller this project is manageable for anybody. See high and low limit settings in Table 5 Advanced Configuration. What could it be? Tests thermostat connection with HVAC off. If using more than 4 zones, use the TAZ-4 Add-A-ZoneTM Control Panel. Serving Eastern Pennsylvania Homeowners & Businesses since 1972! Rural areas: why the heck do customers think its OK to Press J to jump to the feed. Use the following diagram for wiring a dual-fuel system with two-stage furnace and two-stage heat pump. Disconnect power before beginning installation.Wire entire panel before applying transformer power. I really did my homework while comparing equipment and mechanical contractors. Displays active Tstat1 terminals or displays wireless thermostat operation. -ORFollow the instructions that came with the wireless device(s). For heat pump systems, see pages 6 and 7.
How to run a crontab job only if a file exists? You can have air conditioning, or you can have dogs. Use the, Adjust Setting and Next buttons to work through the checkout menu as listed below.
If the light doesn't go out or if the unit doesn't start, you may need to call for service, assuming you checked for the obvious; like tripped breakers or the outdoor reset button. Where are the batteries in a Honeywell thermostat? CANNOT USE TAZ-4 ADD-A-ZONE WITH THE HZ432 IF RF ENABLED IS SET TO YES. truezone sensors If Disabled, the Multistage OT Temp Lockout setting is Disabled. honeywell zone panel controller truezone Are these red lights on my Honeywell HZ432 why my bedroom isn't blowing in heat? Connect DATS as shown. Excellent customer service. When this happens, the indoor unit tends to keep on running because the indoor unit doesnt know there is a problem. It appears our Air Conditioning System has failed. Stack Exchange network consists of 181 Q&A communities including Stack Overflow, the largest, most trusted online community for developers to learn, share their knowledge, and build their careers. Many systems, like the York Stellar Series units have a diagnostic feature. Attach the base to the wall, stud, roof truss, or duct with appropriate screws (not included). Allow panel to changeover from heat pump to fossil fuel based on outdoor temperature, or allow second stage call to changeover panel to fossil fuel for a minimum of one hour when, Dual Fuel Changeover by OT Temp + multistage call. This winter the upstairs heat stays on even when the set temperature is satisfied the upstairs damper seams to be opened when the downstairs zone is calling for heat both zones are open. * 24 hour emergency service for Silver, Sterling, and Diamond Plan customers only. I have HZ311 zone control board and when I turned the thermostat to heat , nothing happened , so I went in the attic nothing moving , I started to wiggle the wire on equipment side and everything came on . Items in blue however can be addressed, some even fixed by the homeowner. Press question mark to learn the rest of the keyboard shortcuts. Honeywell's roots reach to 1885, when an inventor named Albert Butz patented the furnace regulator and alarm. Mine has been working for about a month no problems.
It got down to 19 degrees last night in Austin and the house is still 60 degrees. Which Marvel Universe is this Doctor Strange from? If it doesnt slide up/off or up/back-tilt, you can probably just pull it off. Pick Bossman gonna mark that thing up until I can't sell it.
Required fields are marked *.
Use an SDCR (Slave Damper Control Relay) to add additional dampers to a zone to surpass the maximum Damper VA rating per Zone.
